Features:

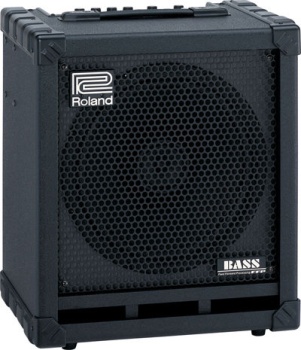

Looking for a portable, professional bass amp that will bring down the house? Roland’s new CUBE-100 BASS amp is compact enough for home practice, but has enough power to drive bass lines through band rehearsals and live gigs thanks to its 100 watts of amplification.
100W powerhouse bass amplifier with 12" coaxial 2-way speaker
8 COSM® amp models and 5 digital effects: chorus/flanger/T-wah, independent delay/reverb
4-band EQ, compressor, and Shape switch for detailed adjustments
Balanced output (with pre/post switch) and Line out for connection to mixers
Recording/Phones output for private practice and recording applications
Pad switch for accepting a wider range of output levels from any type of bass
Ext Speaker jack output allows connection to external speaker cabinet for more powerful sound
More Info
No more info at this time.
Specs
Rated Power Output
100 W
Nominal Input Level (1 kHz)
Input: -10 dBu / 1 M ohms
Speaker
30 cm + Tweeter (Coaxial, 2-way)
Controls
Power Switch,
Input: Pad Switch,
Compression: Compression Knob,
COSM Amplifier: Shape Switch, Type Knob (Super Flat, Flip Top, B Man, T.E, Bass360, Session, Concert810, Octave Bass), Gain Knob, Volume Knob,
Equalizer: Bass Knob, Low-Mid Knob, High-Mid Knob, Treble Knob,
EFX: EFX Knob (Chorus, Flanger, T-Wah),
Delay/Reverb: Delay/Reverb Knob,
Balanced Out: Select Switch (Pre, Post), Gnd Lift Switch (On, Off)
Indicators
POWER, PEAK, COMPRESSION, EFX, DELAY/REVERB
Connectors
INPUT Jack (1/4" phone type)
RECORDING OUT/PHONES Jack (Stereo 1/4" phone type)
FOOT SW Jack (EFX, DELAY/REVERB) (1/4" phone type)
EXT SPEAKER Jack (1/4" phone type)
LINE OUT Jack (1/4" phone type)
TUNER OUT Jack (1/4" phone type)
BALANCED OUT Jack (XLR type)
Power Supply
AC 117 V, AC 230 V, AC 240 V (50/60 Hz)
AC 220 V (60 Hz)
Power Consumption
28 W
Accessory
Owner’s Manual
Option
Foot Switch FS-5U (BOSS)
Size and Weight ( incl. casters ) Width
407 mm
16-1/16 inches
Depth
310 mm
12-1/4 inches
Height
469 mm
18-1/2 inches
Weight
17.0 kg
37 lbs. 8 oz.
* 0 dBu=0.775 Vrms
*The specifications are subject to change without notice.
Insider
Accessories
FS-5U/-5L
Foot Switch
Durable metal footswitch available in latching and unlatching types.
Click for Details
FS-6
Dual Footswitch
Two switches in one, BOSS’s new FS-6 combines latch- and momentary-type switching into one unit.
| Model: |
CB100 |
| Manufacturer: |
Roland |
